Fastening Systems for Canvas

The primary focus is to develop products that can handle the outdoor elements, sun, rain and cold.

Do you know that a hook and loop fastener gets stronger as it gets colder?

We have hook and loop fasteners that are for outdoor and indoor use. Resistant to:

• UV Rays
• Moisture

Adhesives that can handle hot and cold temperatures

Products for the Canvas Industry
		aplix®800 Hook Nylon standard hook. To be used with #800 and #804 loop. Certifications: A-A-55126B.
		aplix®800 Loop Nylon texturized loop.High cycle life and shear strength when used with #800 hook.
		aplix®400 Hook Economical standard nylon hook with good cycle life.
		aplix®400 Loop Economical standard nylon loop with good cycle life.
		aplix®400 Hook and Loop Economical standard nylon hook and loop with good cycle life.
		aplix®810 Polyester Hook and Loop Polyester hook and loop. Fire retardant Resistant to humidity. UV, chemicals. Also available with pressure sensitive adhesive Certifications: FAR 25.853 and BMS 8-285 GFMVSS-302.
		aplix®200 Mushroom Hook Polypropylene mushroom hook with Nylon base, moderate thickness, 100 cycle life. Powerful gripping force.
		aplix®200 Loop Nylon loop, low profile. Up to 50" (1270mm) wide. Top
		aplix®200 Hook and Loop Polypropylene mushroom hook with Nylon base, moderate thinkness, 100 cycle life. Nylon loop, low profile. Powerful gripping force.
		aplix® A Stick Hook and Loop Hook and Loop laminated to a rigid plastic. To be attached to the substrate by the means of a mechanical fastener such as screw, staple, rivet or nail. Available in 1" and 1 3/4 " (25mm and 45mm) widths.

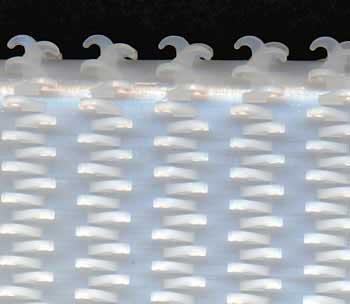

		aplix®730 Plastic Hook Polypropylene extrude hook. Strong gripping power. This hook can be used with the following loops: #800, #804, and #400. Up to 4" (107mm) wide. Available with adhesive.
		aplix®804 Napped Loop Nylon napped loop. Good shear and cycle when used with #800 hook. Also available with pressure sensitive adhesive.
		aplix®922 Arrowhead Hook Nylon extruded Arrowhead hook. Aggressive High Shear strength when used with #800, #804, and #400 loop. Available in 1" (25mm) only, standard or adhesive backing. Limited cycle life.
		aplix® 624 Joint Seam Loop Lock  Polyester knit loop. It can be wrapped around a join seam or sewn into a specific area to mate with aplix® 225, 255 and 985 hook molded in the seat pad.
		aplix® Injection Mold Hook with Push Pins Attachments Mold hooks have very strong gripping power.  Size 1” x 2” (25mm x 50mm). Push pins: arrowhead, christmas tree and extended channel.

Top

Straps

We can produce a variety of straps for you using our standard sizes or we can customize a strap to meet your needs if you have special requirements. Material: Standard backing, #800 Plush, #810 Plush Poly, #802 Twin Loop, #812 Twin loop.

Strap Types
Back Strap
Cinch Strap
Quick Release
Face Strap
Graduated Strap

Adhesives

High Shear PSA, -P- Pressure sensitive	Rubber based adhesive. Adheres to various substrates such rigid polypropylene, cardboard, corrugate, glass, mylar, paper, galvanized metal, stainless steel. Temperature range -20.2F (-29C) to 179.6F (82C).
High Temp PSA -L- Pressure sensitive	Acrylic adhesive. Adheres to Sintra, vinyl, PVC, ABS, Plexiglas, Polycarbonate. Temperature range: -29.2F (-34C) to 284F (140C).
High Tack PSA -R- Pressure sensitive	Thermoplastic Rubber designed for immediate high tack. Adheres to: ABS, Aluminum, Anodized Aluminum, cardboard, foam, corrugate, galvanized metals, glass, mylar, plexiglass, polycarbonate, polyethylene, polyurethane foam, polished woods. Temperature range: -9.39F (-23C) to 129.2F (54C).
Hi Tack Adhesive -Z- Pressure sensitive	Thermoplastic Rubber design for immediate high tack. Adheres to: polyurethane film and foam, polyester foam, cross linked polyethylene foam. Temperature range: -9.39F (-23C) to 129.2F (54C).
